Industrial facilities commonly use three major door types: roller shutters (rolled-up slat doors), rapid (high-speed) doors, and sectional (panel) doors. Each has distinct construction, operation, and ideal applications. For example, roller shutters are heavy-duty slatted doors that coil up into a drum, saving side and head space, and are prized for security and durability. Sectional doors consist of hinged insulated panels that slide up along ceiling tracks, offering superior thermal insulation and weather sealing. Rapid (high-speed) doors use flexible curtains or spiral blades and powerful drives to open/close in seconds, enabling fast traffic flow and tight environmental control. Below we compare their properties, uses, operation, and maintenance.
Industrial Roller Doors (Roller Shutters)
Industrial roller doors (also called roller shutters) use interlocking horizontal slats (steel or aluminum) that roll up into a barrel above the opening. They are space-saving and highly durable, making them ideal for large openings and heavy use. Roller shutters are often used on warehouses, factories, garages and loading docks where security is a priority. Roller shutter doors are space-saving and highly durable, making them ideal for high-traffic or large areas, whereas sectional doors excel more at insulationIndustrial shutters provide a low-cost solution for securing or fire-separating openings and require little space to the sides and above the doorway. Brands: Ezi-roll (QLD, AU) is a leading roller-shutter manufacturer in Australia. Many roller shutters can be insulated or fire-rated; some brands offer insulated roller shutters with foam-filled slats for energy efficiency.
- Operation: A motor or manual hand crank spins the barrel to raise/lower the slatted curtain. The curtain wraps tightly around the drum, so the door saves headroom.
- Strength/Security: Slatted steel shutters are very strong and secure. Optional features include vision panels, locks, or high-security laths.
- Insulation: Standard roller shutters have minimal insulation, but insulated models (like Ezi-roll’s foam-filled slats) reduce heat transfer and noise.
- Best Use: Use where opening size is large, space above door is limited, and high durability or security is needed (e.g. factories, storage).

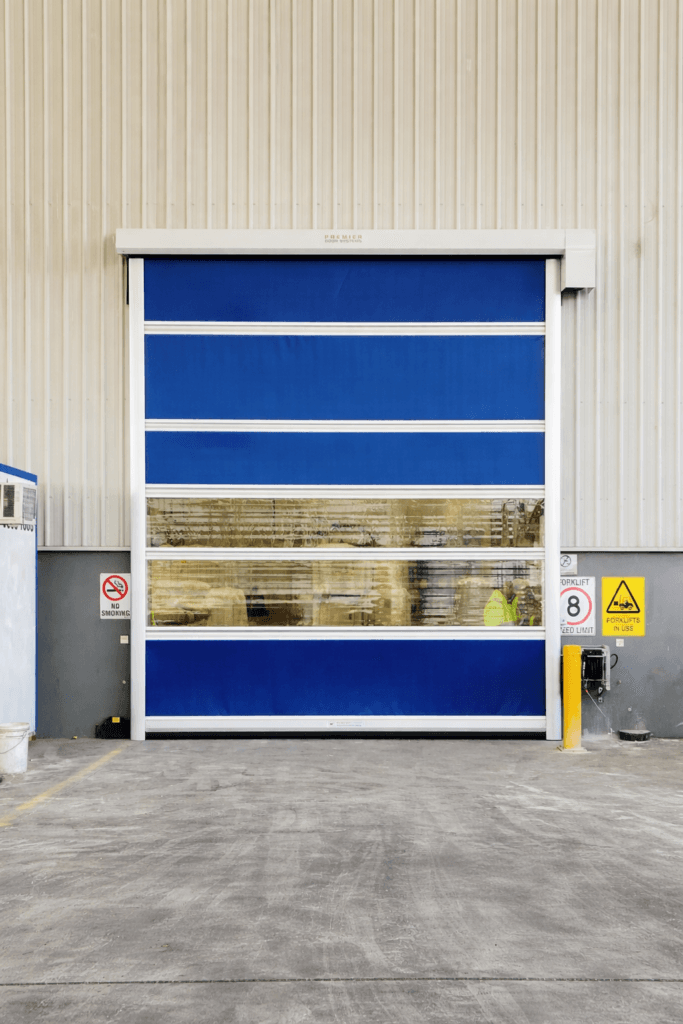

Industrial Rapid (High-Speed) Doors
Rapid or high-speed doors are designed for extremely fast operation to support busy environments. These doors often have a flexible PVC or fabric curtain or spiral construction driven by a powerful motor. They open and close in a few seconds (up to ~3 m/s in top models) to minimize waiting time and climate exchange. Rapid roller doors open and close at speeds of up to 3 m/second, significantly faster than traditional solutions, which can reduce wait times by up to 20% in high-traffic settings. These doors optimize workflow and preserve indoor climate: the flexible curtain unfolds smoothly, allowing continuous movement of forklifts, people or vehicles while maintaining thermal separation. They often include safety features (photocells, soft edges) to avoid injuries or damage.
- Speed: Opens/closes in 1–3 seconds. High throughput (e.g. 15–40 cycles/minute). Speeds up to several meters per second.
- Traffic: Designed for intense use – multiple cycles per minute in warehouses, logistics, food processing or parking garages. Their rapid action greatly improves efficiency.
- Construction: Typically a lightweight curtain (PVC, reinforced fabric or slatted spiral) with a springless counterbalanced system. The curtain rolls or spirals vertically. Premium models use sturdy frames and full seals for freezer/cooler or cleanroom use.
Climate Control: Because they open/close so fast, they help reduce energy loss, dust and noise between zones. Insulated or clear-panel versions can further improve performance. - Safety: Include fast-stop sensors, soft bottom edges, and breakaway features (the curtain will reinsert itself after forklift impacts).
Best Use: High-traffic interior or exterior doorways requiring quick access – e.g. busy loading bays, cold stores, clean facilities, car washes.
Industrial Sectional Doors (Panel Doors)
Sectional (overhead panel) doors comprise several rigid panels hinged together. They lift upward on ceiling tracks, stacking flat under the roof when open. This design offers excellent sealing and insulation. Sectional doors typically have thick foam- or solid-panel construction, so they outperform roller shutters in thermal and acoustic insulation. Sectional doors excel in insulation and weather protection, offering superior climate control compared to roller shutters.
Operation: Powered by springs and cables, the panels follow curved/straight tracks overhead. Heavy-duty torsion springs on the shaft balance the door’s weight, making lifting (by motor or by hand chain) smooth. When open, panels lie flat on the ceiling (see image).
Insulation & Weatherproofing: Sectional doors are often fully insulated. Sectional doors are durable, strong and well insulated, helping maintain building temperature. They have side and header seals, and some models include thermal break frames for cold-storage use.
Security & Size: Built-in locks and the panel design make them very secure. They can cover large openings too, and can include vision windows, wicket doors or fire ratings.
Space Requirements: Need sufficient headroom and backroom for tracks and an open door. In tight spaces, vertical lift sectional models allow higher clearance by taking panels more vertical initially.
Best Use: Facilities where insulation or noise control is important (cold storage, food plants, interior warehouse sections, showrooms). Also where overhead space is available.

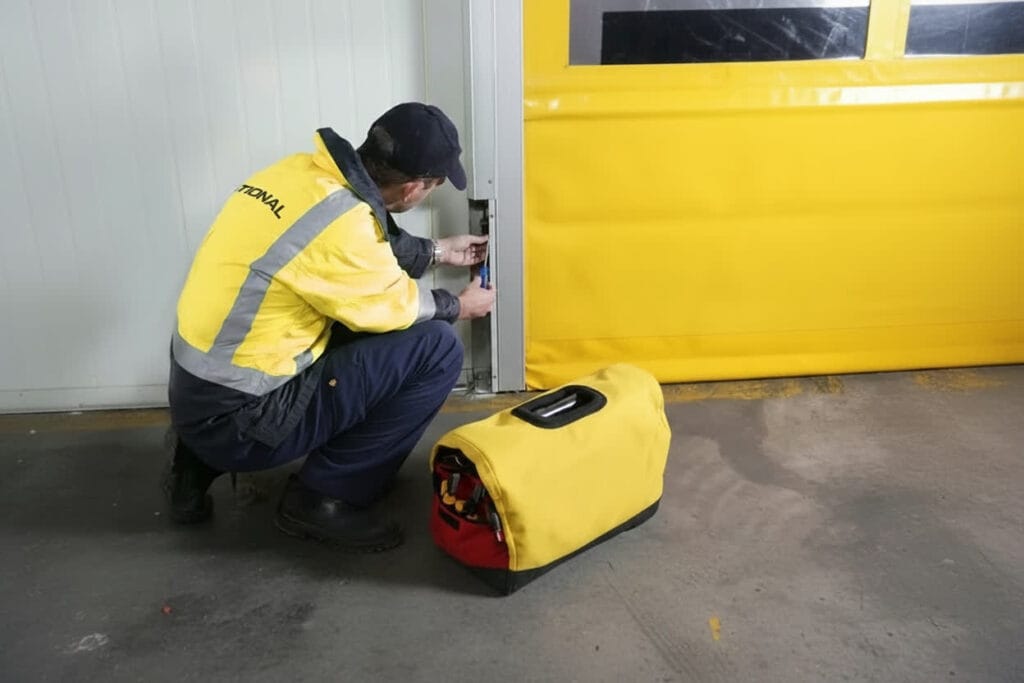

Maintenance and Repair
All industrial doors require routine care. Regular maintenance extends life and prevents failures: this includes inspections, lubrication, cleaning, and timely parts replacement. Experts recommend a tiered schedule.
- Cleaning: Keep door tracks and curtains/panels clean of dust and debris. For roller and high-speed doors, gently wash shutters or curtains with mild detergent to prevent grime buildup.
- Lubrication: Hinges, springs, rollers and bearings should be lubricated (usually annually) to reduce wear. For example, one guide suggests oiling guide rails and bearings once per year and using a silicone lubricant on sectional door rollers and springs.
- Spring and Cable Checks: Inspect torsion springs, cables and counterbalances for wear. Worn springs (10,000+ cycle life) on sectional doors or damaged cables on roller shutters can be hazardous. Always replace worn parts before failure.
- Safety Devices: Test safety edges, photocells and emergency stops monthly to ensure safe operation on high-speed and roller doors.
- Professional Service: Have a qualified technician perform biannual or annual service. They can adjust tension, replace worn components, and test electrical controls.
- Repairs: Only certified technicians should repair major issues (spring replacement, motor faults, structural damage). Signs like unusual noises, jerky movement, or a door failing to hold position indicate it’s time to call professionals.
National Entrance Systems
Products and Services
National Entrance Systems supply and service all these industrial door types. They partner with leading manufacturers and offer a full product range: roller shutter doors, rapid roll doors, sectional doors, and related automation. National Entrance Systems advertises 24/7 nationwide maintenance and repair services for roller, rapid and sectional doors. In summary, whether you need new industrial roller doors, fast high-speed doors, or insulated sectional doors, National Entrance Systems can provide the products and the ongoing repairs/maintenance across Australia.
