Automatic Swing Gates Australia

Swing gates are the access solution of choice for commercial and industrial sites where space allows an inward or outward arc, the entrance profile suits a hinged mechanism, and the application calls for a gate that conveys presence and security rather than a simple barrier arm. From a single leaf at a business park entrance to heavy dual-leaf gates at a logistics yard, swing gates, automated correctly, provide reliable, high-duty access control with lower mechanical complexity than sliding gate alternatives.

National Entrance Systems supplies, installs, and maintains commercial and industrial automatic swing gate systems across Australia. Every installation starts with a site assessment, we match the gate type, motor specification, and access control configuration to your actual site conditions, not a catalogue default.

24/7

Types of Automatic Swing Gates We Supply

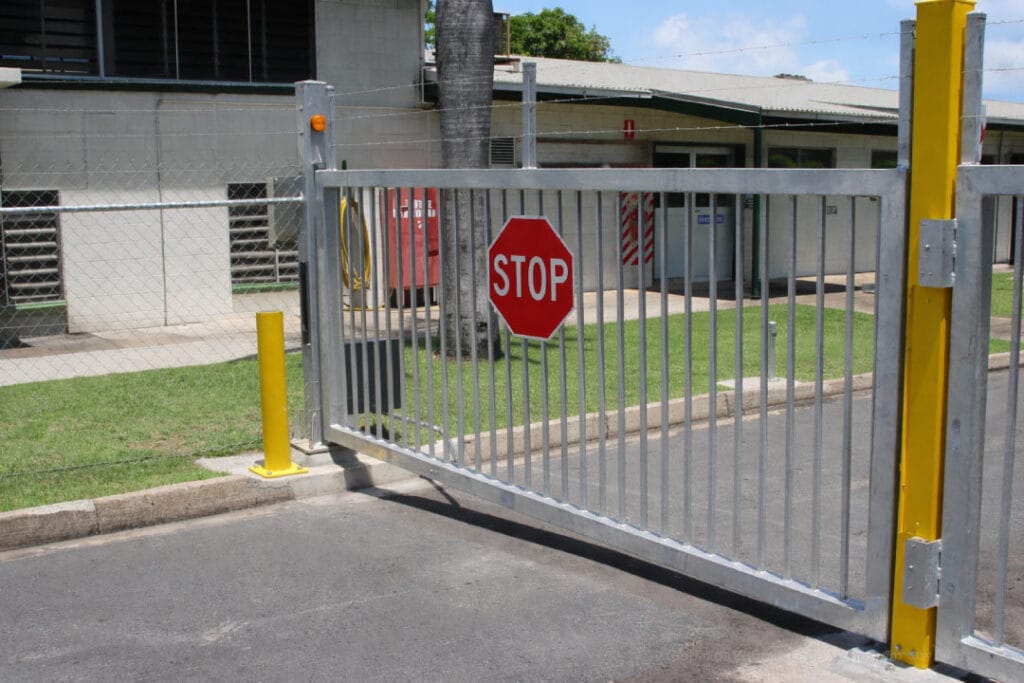

Single Leaf Swing Gates

A single gate panel hinged on one post, swinging in a single arc to open. The most straightforward configuration for commercial entrances, business park entries, and facilities with moderate traffic and a single lane. Single leaf gates suit openings typically up to 4–5 metres wide and are the most cost-effective automated swing gate option.

Best for: Business parks, commercial office entries, smaller warehouse facilities, institutional grounds, and any single-lane commercial entrance with adequate swing clearance.

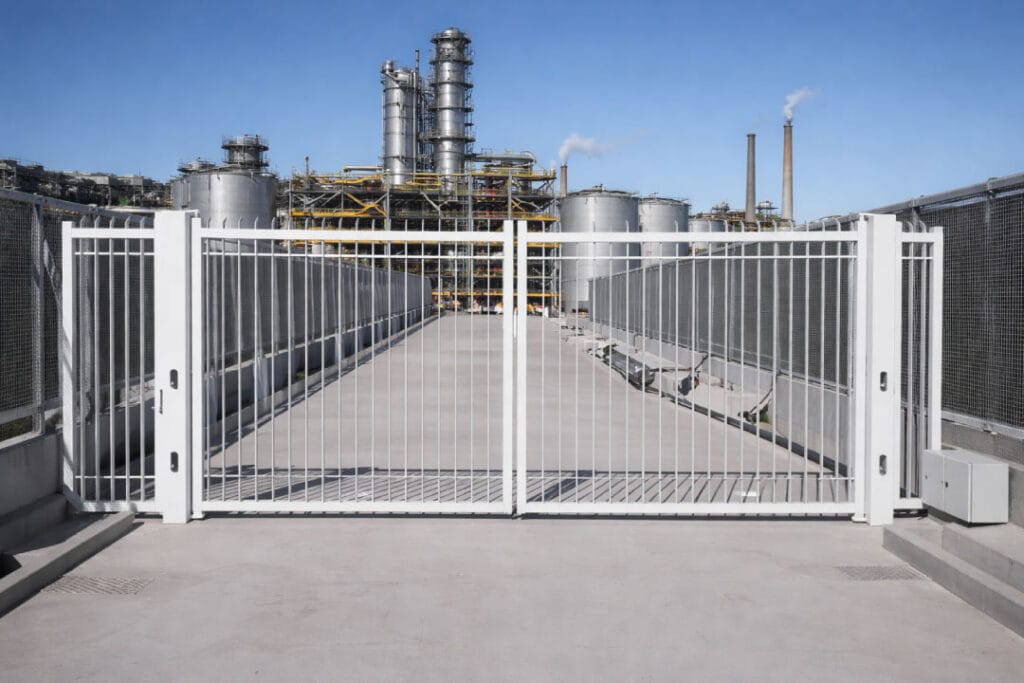

Dual Leaf (Double) Swing Gates

Two gate panels hinged on opposing posts, opening outward or inward from the centre. Required for wider entrances and common in warehouse entries, logistics yards, factory perimeters, and industrial estates where vehicle widths demand a larger clear opening. Each leaf is typically driven by its own motor, operating in a master/slave configuration.

Best for: Wide commercial entrances, warehouse and factory access points, logistics yards, industrial estates, and any site requiring a clear opening wider than a single leaf can practically provide.

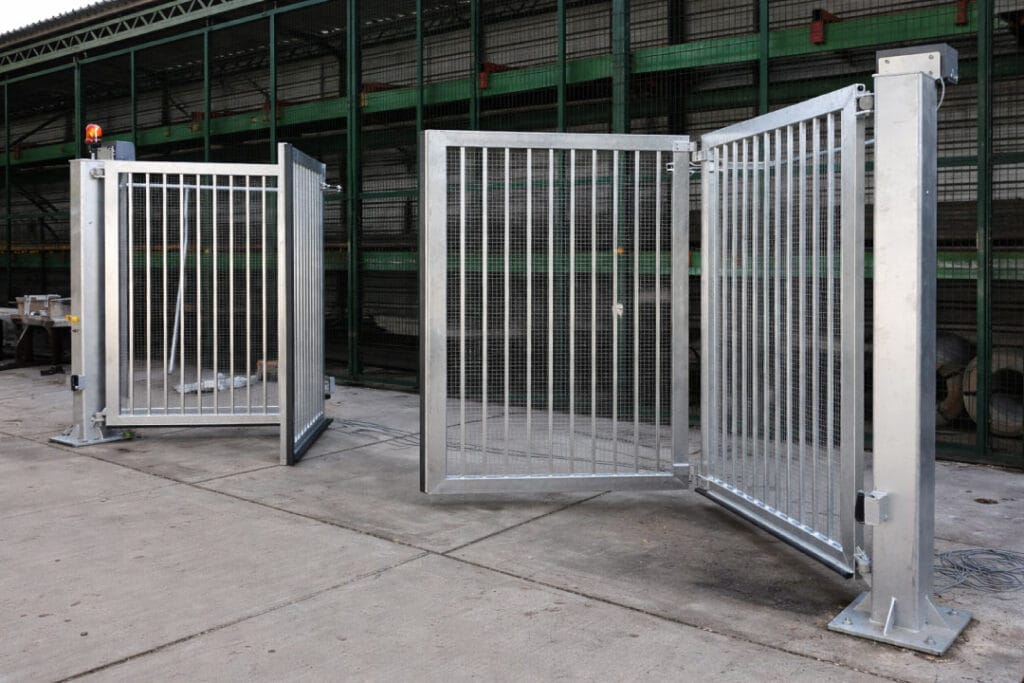

Bi-Fold Swing Gates

Each gate panel folds in the middle as it opens, reducing the sweep arc required. Useful where the full inward or outward clearance for a standard swing gate isn’t available — for example, where parked vehicles, a footpath, or a building structure limits the available arc.

Best for: Sites with restricted swing clearance on either side of the gate opening.

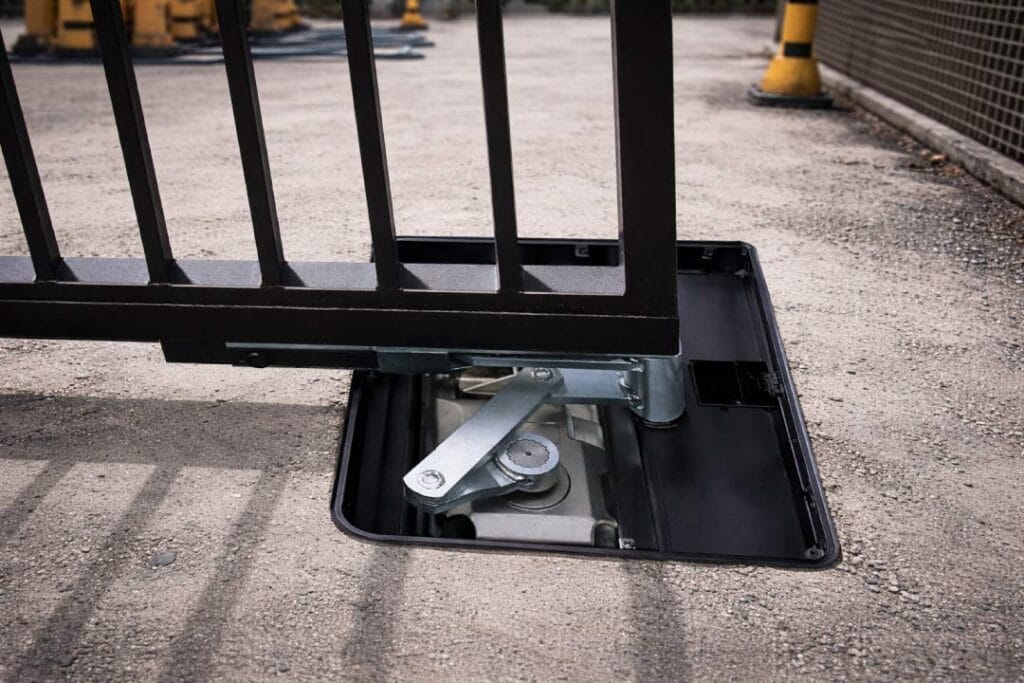

Inground Motor Swing Gates

The automation mechanism is concealed beneath the surface at the hinge point, with no visible motor housing or external arm. The gate appears to operate autonomously — aesthetically clean and often preferred for prestige commercial and institutional entrances where visible motor housings would affect the appearance of the entry.

Best for: Prestige commercial entries, institutional facilities, government buildings, embassies, and high-end commercial developments where gate appearance is a priority.

Site Assessment

What We Evaluate

Every commercial swing gate installation starts with a site assessment before any specification or quote is prepared. We assess:

Hinge post and column condition

the hinge post carries the full suspended weight of the gate leaf plus the operating forces of the motor. A post that isn't structurally adequate for the gate being specified will fail, regardless of how good the gate and motor are. We assess post material, cross-section, and embedment depth before recommending any gate above light commercial weight.

Power supply availability

mains power proximity and conduit routing requirements. For remote gate positions, solar-powered systems are an option we assess for suitability.

Available swing arc

the gate needs clear arc space on its swing side. We map the full arc path and identify any obstructions (parking bays, footpaths, building structures, gradient changes) that affect whether a standard swing, bi-fold, or alternative configuration is appropriate.

Traffic volume and vehicle types

daily cycle count drives motor duty cycle specification. Vehicle width at the site determines the minimum clear opening required, which drives the leaf length specification.

Ground conditions and gradient

swing gates on sloping ground require specific motor configuration to ensure the gate doesn't drift when the motor releases. We assess gradient and specify accordingly.

Access control requirements

what triggers the gate (remote, RFID, intercom, loop detector, smartphone), who needs access, and what integration is required with existing building systems.

Choosing the Right Swing Gate Motor for Your Application

The motor is the most consequential specification decision for any automatic swing gate. The three main operator technologies, articulated arm, hydraulic, and linear (screw drive), each have distinct performance profiles, weight ratings, duty cycle capabilities, and installation requirements. Getting this wrong means a motor that fails prematurely, a gate that moves too slowly for commercial traffic volumes, or an installation that’s correct on paper but inadequate for the actual conditions.

01 Articulated Arm Operators

The most widely installed swing gate operator type in commercial applications across Australia. A two-part hinged arm attaches to the gate leaf and the gate post or column, pushing and pulling the leaf open and closed as the motor drives the arm through its articulation. Articulated arm systems are typically electromechanical, a motor drives a gearbox which extends and retracts the arm.

Best for: Standard commercial swing gates, single and double leaf applications, gates from light commercial through to medium industrial weight ranges. The most cost-effective option for standard commercial applications. FAAC’s 391 series, BFT’s PHOBOS range, and NICE’s WINGO series are all articulated arm operators commonly installed across Australian commercial sites.

Limitations: The mechanical arm is visible and positioned on the face of the gate post, not suitable where aesthetics require a concealed mechanism. Articulated arm systems also have a defined weight and leaf length limit beyond which hydraulic operators are the more appropriate choice.

02 Linear (Screw Drive) Operators

An electromechanical actuator where a motor drives a threaded rod (screw) in and out of a housing, providing a push-pull force on the gate leaf. FAAC’s 415 and 422 series are typical linear actuators. Linear operators sit between articulated arm and full hydraulic in terms of power and duty cycle capability, more power than most articulated arm systems, lower than hydraulic.

Best for: Medium to large commercial swing gates where articulated arm operators are at or near their rated limit but full hydraulic specification isn’t required. Also used in lower-headroom situations where an articulated arm doesn’t have the clearance to operate correctly.

03 Inground (Underground) Operators

The motor mechanism is concealed below the driveway surface at the hinge point. No visible motor housing or arm, the gate appears to operate with no visible mechanism. Inground systems use either electromechanical or hydraulic technology, with hydraulic inground operators (FAAC 390, BFT IGEA series) preferred for commercial-grade duty cycles.

Best for: Prestige commercial entries, institutional buildings, government facilities, and high-end commercial developments where the appearance of the entry is a priority and visible motor housings are not acceptable.

Motor selection summary

Application	Recommended Operator Type
Standard commercial, light-medium gate	Articulated arm (electromechanical)
Heavy commercial / industrial, high-cycle	Hydraulic linear actuator
Medium commercial, articulated arm at limit	Linear screw drive
Prestige / concealed requirement	Inground (electromechanical or hydraulic)
Coastal / harsh environment, any weight	Hydraulic (superior weather resistance)

04 Hydraulic Operators

Hydraulic linear actuators, where an oil-filled cylinder extends and retracts to push and pull the gate leaf, are the preferred specification for heavy-duty commercial and industrial swing gates. FAAC pioneered hydraulic swing gate automation and their hydraulic range (400 series, 760 series) remains the benchmark for commercial and industrial applications globally.

The advantages of hydraulic over electromechanical are significant for high-duty commercial applications: service life up to four times longer than equivalent electromechanical systems, superior resistance to dust, salt air, and weather exposure, and high power in a compact housing suitable for gate leaves up to 7 metres wide and heavy fabricated steel panels.

Best for: Heavy commercial and industrial gates, high-cycle applications (logistics yards, factory entrances, industrial estates), sites with challenging environmental conditions (coastal, dusty, or hot), and any application where the gate leaf weight or width exceeds the practical range of articulated arm operators.

Commercial note: For strata complexes and commercial entries that cycle many times per day, hydraulic operators are worth the additional upfront cost, their longer service life and lower maintenance requirement typically deliver a lower total cost over a 10-year period than an electromechanical operator that needs replacement at year 5–7.

Access Control Integration

A swing gate automation system is only as capable as the access control inputs connected to it. We design, supply, and configure the full access control solution, not just the gate mechanism.

RFID and proximity card/fob readers

the most common configuration for commercial sites

Video and audio intercoms

for managed entry requiring visual verification

Remote controls

single-frequency and rolling-code systems for simpler applications

Automatic Number Plate Recognition (ANPR)

camera-based systems that authorise entry by registration plate without physical credentials

Keypads and PIN entry

standalone or as a secondary method alongside cards

Building Management System

for sites where gate operation needs to be coordinated with other building systems

Swing Gate Brisbane

Brisbane CBD and metropolitan area, Sunshine Coast, Gold Coast, and regional Queensland. Strong presence in industrial estates and commercial facilities across South East Queensland.

Swing Gate Perth

Perth metropolitan coverage including Kewdale, Welshpool, Malaga, and surrounding industrial zones. Significant experience with mining-adjacent facilities and heavy industrial access control requirements in WA.

Swing Gates Adelaide and Regional

Adelaide metro coverage and regional locations across SA, NSW, VIC, and QLD. Contact us to confirm availability for your specific location.

Swing Gate Repair & Installation Across Australia

Our installation and service teams are locally based across Australia, not dispatched from a central hub. This means realistic response times and no inflated travel costs for regional sites.

Swing Gates Sydney

We cover Sydney CBD, inner suburbs, Greater Western Sydney, the North Shore, and the Illawarra. High concentration of work in commercial car parks, strata complexes, hospital facilities, and industrial estates in Western Sydney and South Sydney.

Swing Gate Melbourne

Full metropolitan Melbourne coverage with particular depth in industrial zones: Dandenong, Tullamarine, Laverton, Truganina, Altona, Campbellfield, and Port Melbourne. Logistics, manufacturing, and commercial office park work.

Swing Gate Canberra

Full ACT coverage including government facilities, university campuses, research institutions, and commercial complexes. We understand the compliance and security requirements particular to Canberra-based installations.

Swing Gates vs Sliding Gates

Which Is Right for Your Site?

This is the most common question facility managers ask when specifying a new gate. The honest answer depends on your site conditions, not a preference.

Choose a swing gate when

Choose a sliding gate when

Maintenance and Repair

Swing gate systems require regular maintenance to perform reliably over their service life. The hinge points, arm pivot bearings, motor gearbox, and limit switches are all wear components that degrade without attention. For commercial and industrial sites, we recommend service every 6–12 months depending on cycle volume. A standard maintenance visit covers:

For sites with existing swing gate systems that need repair, including systems installed by other contractors, our technicians service all makes and models. We carry parts for major brands on-van and aim to complete most repairs in a single visit.

Get a Fast Quote for Your Swing Gate Repair

Tell us about your site, the location, the application, the approximate traffic volume, and any access control requirements, and we’ll come back with a recommendation and written quote. For larger projects, we’ll arrange a free site visit first.

Frequently Asked Questions

How long does a swing gate installation take?

swing gate installation typically takes one to two days, depending on site conditions and access control complexity. Inground motor systems may require additional civil preparation time.

What happens during a power outage?

All commercial swing gate systems include a manual release mechanism allowing the gate to be operated by hand during power outages. Battery backup systems are available for sites where maintaining automated operation during outages is critical.

Can an existing manual swing gate be automated?

In most cases, yes — provided the existing gate structure is sound, properly hung, and the hinges and posts can carry the additional load of automation hardware. We assess existing gates as part of the site inspection and advise on suitability before quoting.

How heavy can the gate leaves be?

Electromechanical systems handle leaves up to approximately 500kg per panel. Hydraulic systems extend this significantly — FAAC's heavy-duty hydraulic operators handle leaves up to 800kg or more. For very large or heavy industrial gates, we assess and specify accordingly.

Do swing gates need council approval?

This depends on the site, the gate's position relative to the street boundary, and your local council's planning requirements. We advise on permit requirements as part of the pre-installation process.

Swing Gate Maintenance & Repair

Automatic swing gates require regular maintenance to perform reliably through their service life. A swing gate cycling 30 times per day, typical for a strata complex or commercial office entry, accumulates over 10,000 cycles per year. Hinge wear, motor and actuator wear, limit switch drift, and safety device calibration all require periodic attention.

Recommended maintenance intervals:

Common swing gate faults we repair:

Motor and actuator failure: slow or laboured gate movement, grinding during operation, the gate stopping mid-travel, or complete loss of movement. Electromechanical motors fail at predictable intervals; hydraulic operators fail less frequently but require oil and seal inspection at service intervals.

Hinge wear: swing gates put significant load on their hinges with every cycle. Worn hinges allow the gate to sag, changing the geometry of the motor arm attachment and eventually causing motor strain and arm component wear. Hinge inspection and replacement is part of every maintenance visit.

Limit switch and encoder faults: limits tell the motor where to stop. When they drift, the gate doesn’t open fully (frustrating for wide vehicle clearance) or overshoots its closed position (motor strain and potential locking mechanism damage).

Safety device faults: obstacle detection, safety beams, and safety edges on swing gates must function correctly. A gate that doesn’t detect an obstruction and doesn’t reverse is a WHS compliance failure and a liability risk.

Access control integration faults: RFID reader failures, remote control issues, loop detector faults, intercom communication problems. Often the gate mechanics are fine but the trigger mechanism has failed.

We service and repair swing gate systems across Australia, all brands, regardless of who originally installed them.
